3000*1500mm 3000W IPG Fiber Laser Cutting Machine For Metal Signs Labels Crafts

Name: 30001500mm 3000W IPG Fiber Laser Cutting Machine For Metal Signs Labels Crafts
Brand: Honest
Price: 16800 USD

Buy cheap 3000*1500mm 3000W IPG Fiber Laser Cutting Machine For Metal Signs Labels Crafts product

Brand Name : Honest

Model Number : 3015

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 16800$-30000$ per one set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance

Supply Ability : 20 per a month

Delivery Time : 10-20 wooking days

Packaging Details : wooden package

Graphic format supported : DXF,PLT,AI,DST,BMP

Cnc or not : Yes

Cooling mode : Water Cooling

Cutting speed : 120/min

Control system : Cypcut

Working table : 3000*1500 (mm)

Keyword : Fiber Laser Cutting Machiens

Laser source : Raycus or IPG or Max

Contact Now

Fiber laser cutting machine is a high-tech equipment integrating advanced fiber laser technology, numerical control technology and precision mechanical technology. It uses an advanced fiber laser to output a high-energy density laser beam. The cutting head focuses the beam on the surface of the workpiece to form a small spot (the smallest diameter can be less than 0.1mm), so that the workpiece is illuminated by the ultra-fine focusing point. Melt and evaporate, and then evaporate to form a hole. The numerical control mechanical system moves the position of the laser spot to make the hole continuously form a narrow slit to realize automatic cutting.Applications primarily suited for sheet metal processing,such as various metal products processing industries,agricultural machinery industry ,automobiles, aircraft and ships,electrical equipment,lighting advertising industry,elevator manufacturing,kitchen electrical appliances and so on.

Product Advantages

The advantages of fiber laser cutting machine:

Excellent path quality: Smaller laser dot and high work efficiency, high quality.
High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption,it is only about 20%-30% of traditional CO2 laser cutting machine.

3000*1500mm 3000W IPG Fiber Laser Cutting Machine For Metal Signs Labels Crafts

product details

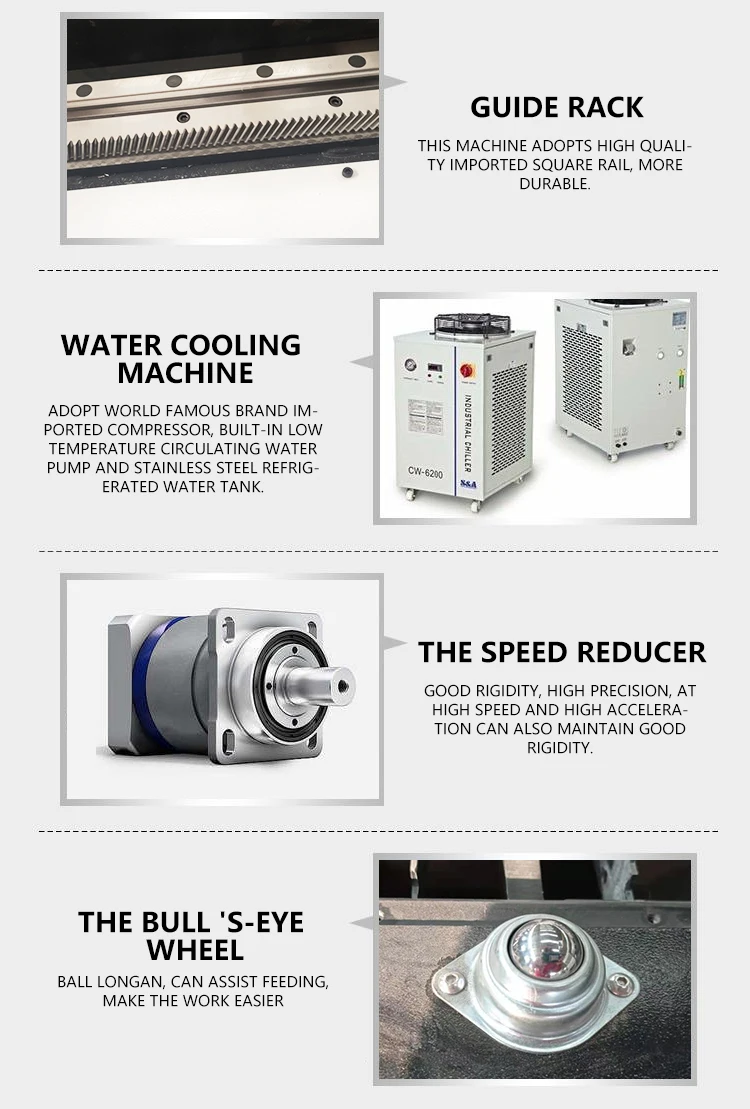

Special fiber cutting head German craftsmanship, technology is stable and reliable; the internal structure of the laser head is complete Fully sealed, can prevent the optical part from being polluted by dust. Laser head mining Two-point centering adjustment is used, and the focusing is driven by an imported motor. Surface efficiency is significantly improved; the protective lens adopts drawer type installation and replacement convenient.

Technique Parameters

Feature/Model	HN3015	HN4015	HN4020
Working Area (L*W))	3000mm*1500mm	4000mm*1500mm	4000mm*2000mm
Stroke (X/ Y/ Z Axis)	1525mm/3025mm/150mm	1525mm/4025mm/150mm	2025mm/4025mm/150mm
X/Y Axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y Axis Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm
Max. Moving Speed	110m/min	110m/min	110m/min
Max. Acc. Speed	1.0G	1.0G	1.0G
Power Porection Grade	IP54	IP54	IP54
Laser Power	1500W~4000W	1500W~4000W	1500W~4000W
Max. Loading Weight	800kg	1000kg	1400kg
Machine Weight	3300Kg	4000Kg	5100Kg
Overall Dimensions (LWH)	4850X2730X1700mm	6015X2730X1700mm	6015X3300X1700mm

Application Example

Fiber laser cutting machine is used in sheet metal processing, advertising sign production, cabinet electrical cabinets,mechanical
 parts, kitchenware, sanitary ware, auto parts, machinery manufacturing,metal crafts, saw blades, electrical parts,glasses
 industry, spring sheets, circuit boards,electrical Kettles, medical microelectronics, hardware, doors and windows and other
 industries.
